ADAPTABLE CONFIGURATION TO SPECIFIC ROLES

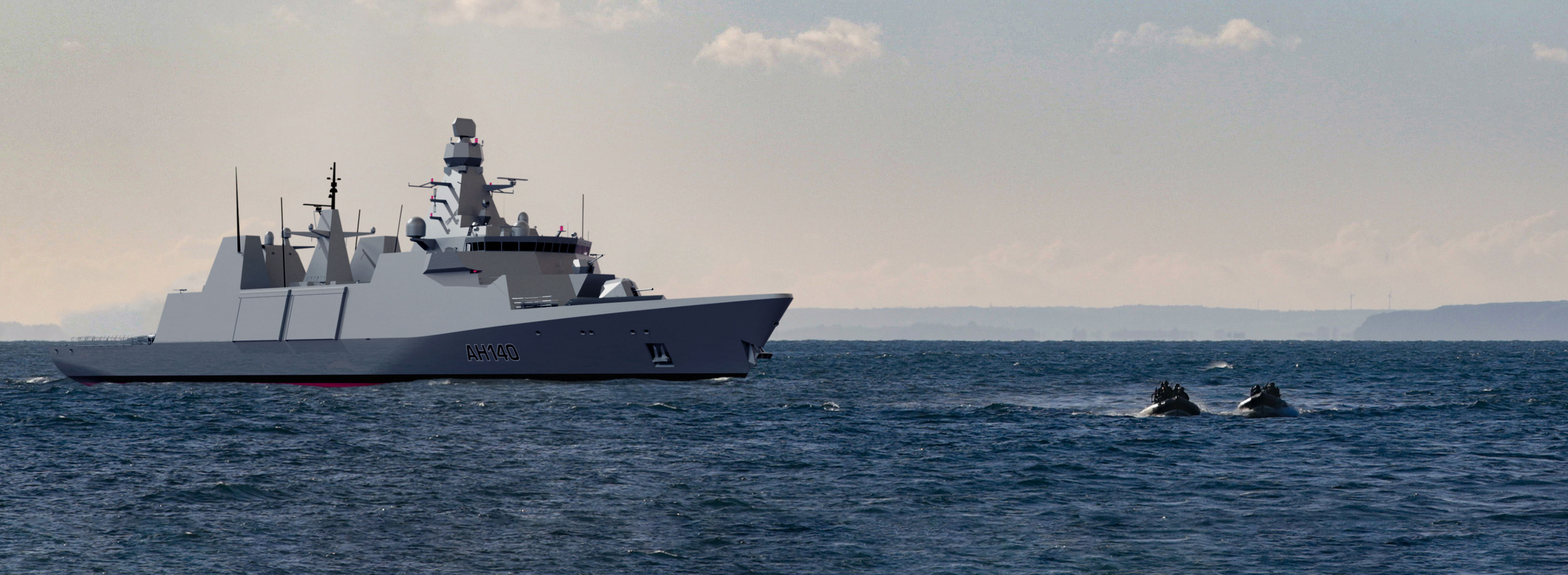

General Purpose Frigate
icon

General Purpose Frigate

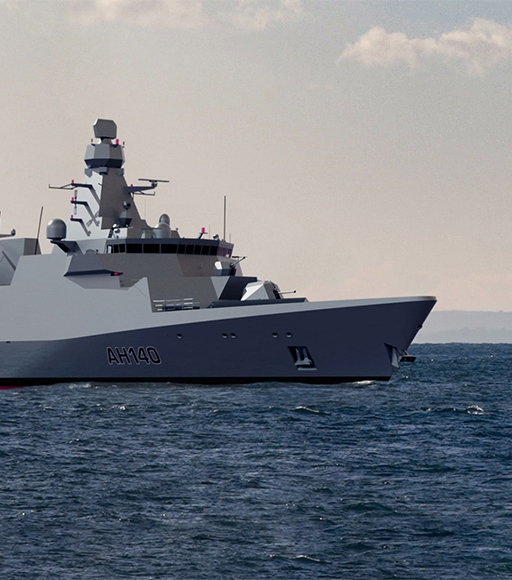

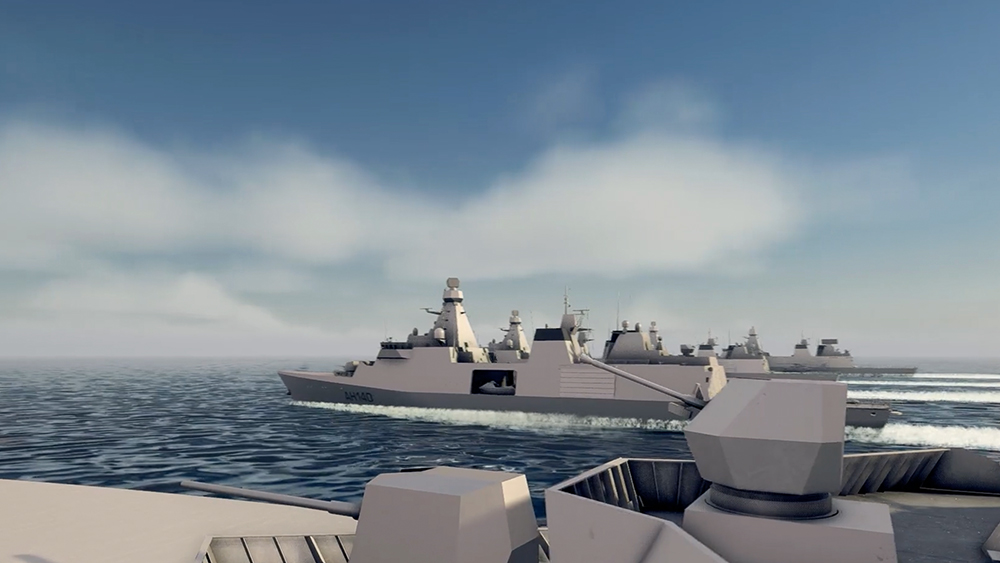

Driven by innovation and backed by heritage, Arrowhead 140 is a modern warship that will meet the maritime threats of today and tomorrow and has British ingenuity and engineering at its core.

  • ROLE SPECIFIC FEATURES

    Minimum operating Complement circa 100 personnel with over 80 additional bunks available for an embarked Task Group command staff, troops or other additional operational personnel.

    With Selective Catalytic Reduction (SCR) equipment, AH140 is compliant with IMO Tier III environmental regulations and able to operate in emission control areas worldwide.

  • SURVIVABILITY, RECOVERABILITY & STANDARDS

    Driven by compliance with Lloyd’s Register Naval Ship Rules, UK Naval Standards and NATO ANEP-77 Naval Ship Code amongst many other naval standards, the AH140 platform includes levels of survivability, damaged stability and recoverability that exceed those of many contemporary complex Frigate designs. These levels allow AH140 to operate in the threat environment commensurate with combat operations.

  • PROCESSING SYSTEM, C2, SENSORS AND SYSTEMS

    Can be fitted with an open architecture and scalable Combat Management System, from a range of suppliers.

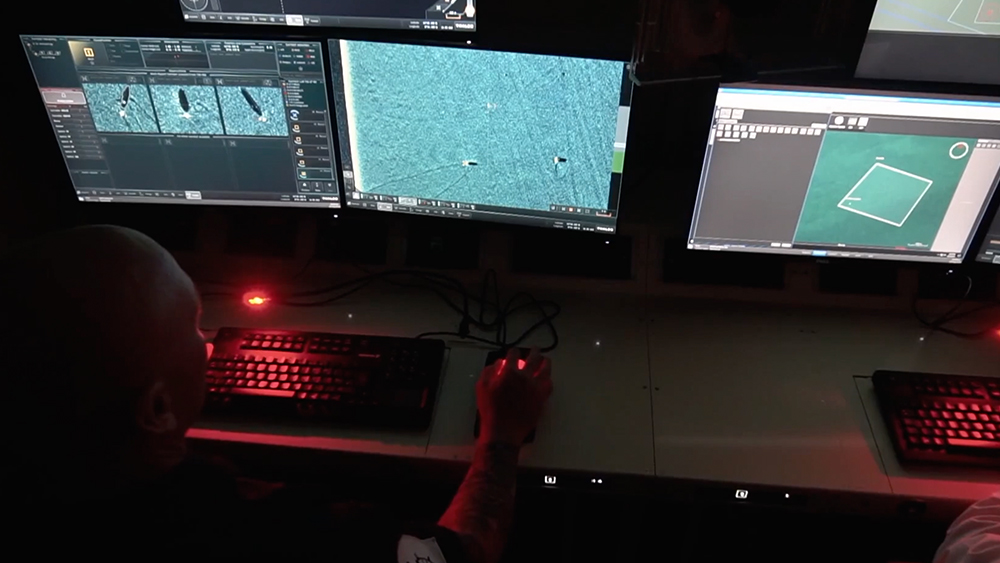

    Includes comprehensive Command and Control facilities, including dedicated planning and operational spaces for Task Group commanders.

    Integrated EW suite including R-ESM, C-ESM and R-ECM off-board decoys.

    Fitted with an Integrated Bridge and Navigation System, Integrated Platform Management System and Damage Surveillance and Control system.

  • PRINCIPAL PARTICULARS

    • Length O.A: 138.7 metres
    • Beam O.A: 20.4 metres
    • Max Draught: 5.5 metres
    • Max Displacement: ~7000 tonnes

  • PERFORMANCE

    • Range: 6500 – 9000 nm
    • Maximum Speed: +28 knots
    • Cruise Speed: 12 – 16 knots
    • Power and Propulsion: CODAD 4 x Diesel Engines, 2 x Controllable Pitch Propellers and 4 x Diesel Generators
    Range, maximum speed and cruise speed depend on customer operational profile, loading conditions and sea and wave environment.

  • PLATFORM ADDITIONAL FEATURES

    Dedicated reconfigurable space capable of accommodating 20 ft ISO Containers supported by power, communications and data services.

    Incorporates improved Medical Facilities including an Operating Theatre, Intensive Care, Resuscitation Facility and Isolation Ward.

Enhanced General Purpose Frigate
icon

Enhanced General Purpose Frigate

The wide ranging general purpose capabilities of the baseline AH140 platform can be augmented and tailored to suit the operational need and operating environment of each Navy. Selecting the size of mission boats and aircraft that can be embarked, configuring the accommodation provision and incorporating equipment from national suppliers are some examples of how the flexible AH140 Frigate can be optimised to meet the requirements of any naval customer.

  • ROLE SPECIFIC FEATURES

    Features including the sensors and effectors can be tailored to suit the individual operational needs of a Navy as the AH140 Frigate is designed with generous space, weight and power margins to facilitate a wide range of options.

  • SURVIVABILITY, RECOVERABILITY & STANDARDS

    Driven by compliance with Lloyd’s Register Naval Ship Rules, UK Naval Standards and NATO ANEP-77 Naval Ship Code amongst many other naval standards, the AH140 platform includes levels of survivability, damaged stability and recoverability that exceed those of many contemporary complex Frigate designs. These levels allow AH140 to operate in the threat environment commensurate with combat operations.

  • PROCESSING SYSTEM, C2, SENSORS AND SYSTEMS

    • Can be fitted with an open architecture and scalable Combat Management System, from a range of suppliers.Includes comprehensive Command and Control facilities, including dedicated planning and operational spaces for Task Group commanders.Integrated EW suite including R-ESM, C-ESM and R-ECM off-board decoys.

      Fitted with an Integrated Bridge and Navigation System, Integrated Platform Management System and Damage Surveillance and Control system.

  • PRINCIPAL PARTICULARS

    • Length O.A: 138.7 metres
    • Beam O.A: 20.4 metres
    • Max Draught: 5.5 metres
    • Max Displacement: ~7000 tonnes

  • PERFORMANCE

    • Range:  6500 – 9000 nm
    • Maximum Speed:  +28 knots
    • Cruise Speed: 12 – 16 knots
    • Power and Propulsion: CODAD 4 x Diesel Engines, 2 x Controllable Pitch Propellers and 4 x Diesel Generators
    Range, maximum speed and cruise speed depend on customer operational profile, loading conditions and sea and wave environment.

  • PLATFORM ADDITIONAL FEATURES

    • Dedicated reconfigurable space capable of accommodating 20 ft ISO Containers supported by power, communications and data services.
    • Incorporates improved Medical Facilities including an Operating Theatre, Intensive Care, Resuscitation Facility and Isolation Ward.
Anti-Air Warfare
icon

Anti-Air Warfare

Configured to provide area air defence to a Fleet against an advanced adversary, including Ballistic Missile Defence (BMD) capability. This includes the sensors and effectors for inner-layer (Turret-based), mid-layer and outer-layer defence with both hardkill and softkill options. Allied with the survivability, recoverability and signatures of the baseline AH140 platform this configuration will protect itself, mission-essential assets within the Fleet or a nation’s territory from multiple waves of a concerted air attack and ballistic missile threats.



  • ROLE SPECIFIC FEATURES

    Features including the sensors and effectors can be tailored to suit the individual operational needs of a Navy as the AH140 Frigate is designed with generous space, weight and power margins to facilitate a wide range of options.

  • SURVIVABILITY, RECOVERABILITY & STANDARDS

    Driven by compliance with Lloyd’s Register Naval Ship Rules, UK Naval Standards and NATO ANEP-77 Naval Ship Code amongst many other naval standards, the AH140 platform includes levels of survivability, damaged stability and recoverability that exceed those of many contemporary complex Frigate designs. These levels allow AH140 to operate in the threat environment commensurate with combat operations.

  • PROCESSING SYSTEM, C2, SENSORS AND SYSTEMS

    • Can be fitted with an open architecture and scalable Combat Management System, from a range of suppliers.
    • Includes comprehensive Command and Control facilities, including dedicated planning and operational spaces for Task Group commanders.Integrated EW suite including R-ESM, C-ESM and R-ECM off-board decoys.Fitted with an Integrated Bridge and Navigation System, Integrated Platform Management System and Damage Surveillance and Control system.

  • PRINCIPAL PARTICULARS

    • Length O.A: 138.7 metres
    • Beam O.A: 20.4 metres
    • Max Draught: 5.5 metres
    • Max Displacement: ~7000 tonnes

  • PERFORMANCE

    • Range:  6500 – 9000 nm
    • Maximum Speed:  +28 knots
    • Cruise Speed: 12 – 16 knots
    • Power and Propulsion: CODAD 4 x Diesel Engines, 2 x Controllable Pitch Propellers and 4 x Diesel Generators
    Range, maximum speed and cruise speed depend on customer operational profile, loading conditions and sea and wave environment.

  • PLATFORM ADDITIONAL FEATURES

    • Dedicated reconfigurable space capable of accommodating 20 ft ISO Containers supported by power, communications and data services.Incorporates improved Medical Facilities including an Operating Theatre, Intensive Care, Resuscitation Facility and Isolation Ward.
Anti-Submarine Warfare
icon

Anti-Submarine Warfare

Optimised for operations against an underwater threat, this configuration of the baseline AH140 design includes the towed sensors and systems required to enable tactical shaping operations and the screening of other Task Group assets. This ASW capability can be augmented to include deepfield operations against a SS(N) threat in blue-water environments with further platform options adopted. Together with aircraft and ship-launched anti-submarine weapons and softkill systems, this will enable AH140 to search, identify, classify and prosecute hostile submarines.

  • ROLE SPECIFIC FEATURES

    Underwater radiated noise signatures are managed within the platform, to reduce the range at which it can be detected by an adversary. This includes measures to counter the self-noise of the main propulsion, electrical power generation and auxiliary systems.

  • SURVIVABILITY, RECOVERABILITY & STANDARDS

    Driven by compliance with Lloyd’s Register Naval Ship Rules, UK Naval Standards and NATO ANEP-77 Naval Ship Code amongst many other naval standards, the AH140 platform includes levels of survivability, damaged stability and recoverability that exceed those of many contemporary complex Frigate designs. These levels allow AH140 to operate in the threat environment commensurate with combat operations.

  • PROCESSING SYSTEM, C2, SENSORS AND SYSTEMS

    • Can be fitted with an open architecture and scalable Combat Management System, from a range of suppliers.
      Includes comprehensive Command and Control facilities, including dedicated planning and operational spaces for Task Group commanders.
      Integrated EW suite including R-ESM, C-ESM and R-ECM off-board decoys.
      Fitted with an Integrated Bridge and Navigation System, Integrated Platform Management System and Damage Surveillance and Control system.

  • PRINCIPAL PARTICULARS

    • Length O.A: 138.7 metres
    • Beam O.A: 20.4 metres
    • Max Draught: 5.5 metres
    • Max Displacement: ~7000 tonnes

  • PERFORMANCE

    • Range:  6500 – 9000 nm
    • Maximum Speed:  +28 knots
    • Cruise Speed: 12 – 16 knots
    • Power and Propulsion: CODAD 4 x Diesel Engines, 2 x Controllable Pitch Propellers and 4 x Diesel Generators
    Range, maximum speed and cruise speed depend on customer operational profile, loading conditions and sea and wave environment.

  • PLATFORM ADDITIONAL FEATURES

    • Dedicated reconfigurable space capable of accommodating 20 ft ISO Containers supported by power, communications and data services.
    • Incorporates improved Medical Facilities including an Operating Theatre, Intensive Care, Resuscitation Facility and Isolation Ward.
Land Strike
icon

Land Strike

As a globally deployable and high endurance Frigate, AH140 can be pre-positioned anywhere in the world to intervene rapidly in a developing situation. In the Land Strike configuration the baseline AH140 Frigate will be capable of influencing events ashore with cruise missiles for long range precision effects and gun systems focused towards naval fires against shore targets.

  • ROLE SPECIFIC FEATURES

    This configuration would be employed to deliver long range precision effects with cruise missiles, alongside illumination, suppression, neutralisation or destruction of land targets at greater ranges from shore using a larger medium calibre gun system with automated ammunition handling.

  • SURVIVABILITY, RECOVERABILITY & STANDARDS

    Driven by compliance with Lloyd’s Register Naval Ship Rules, UK Naval Standards and NATO ANEP-77 Naval Ship Code amongst many other naval standards, the AH140 platform includes levels of survivability, damaged stability and recoverability that exceed those of many contemporary complex Frigate designs. These levels allow AH140 to operate in the threat environment commensurate with combat operations.

  • PROCESSING SYSTEM, C2, SENSORS AND SYSTEMS

    • Can be fitted with an open architecture and scalable Combat Management System, from a range of suppliers.
      Includes comprehensive Command and Control facilities, including dedicated planning and operational spaces for Task Group commanders.
      Integrated EW suite including R-ESM, C-ESM and R-ECM off-board decoys.
      Fitted with an Integrated Bridge and Navigation System, Integrated Platform Management System and Damage Surveillance and Control system.

  • PRINCIPAL PARTICULARS

    • Length O.A: 138.7 metres
    • Beam O.A: 20.4 metres
    • Max Draught: 5.5 metres
    • Max Displacement: ~7000 tonnes

  • PERFORMANCE

    • Range:  6500 – 9000 nm
    • Maximum Speed:  +28 knots
    • Cruise Speed: 12 – 16 knots
    • Power and Propulsion: CODAD 4 x Diesel Engines, 2 x Controllable Pitch Propellers and 4 x Diesel Generators
    Range, maximum speed and cruise speed depend on customer operational profile, loading conditions and sea and wave environment.

  • PLATFORM ADDITIONAL FEATURES

    • Dedicated reconfigurable space capable of accommodating 20 ft ISO Containers supported by power, communications and data services.
    • Incorporates improved Medical Facilities including an Operating Theatre, Intensive Care, Resuscitation Facility and Isolation Ward.
Mine Countermeasures
icon

Mine Countermeasures

The specialist Mine Countermeasures configuration is based on an AH140 variant that has been optimised to embrace modularity and allow for quick re-role to other configurations. This significantly reworked design enables AH140 to embark a considerable number of off-board assets such as USVs, UAVs and UUVs, alongside command & control facilities to analyse data from the assets and to coordinate the MCM activity. Employing the bespoke features of this variant enables the platform to carry out both Channel Standoff and Area Standoff concepts of operation within a contested environment.

  • ROLE SPECIFIC FEATURES

    With extensive sections of the ship dedicated to an extended vehicle hangar, this variant has the space to re-role the uncrewed vehicles to deliver the various MCM tasks, including search, classification and disposal, and carry out the necessary maintenance on these vehicles to sustain the required tempo of operations.

  • SURVIVABILITY, RECOVERABILITY & STANDARDS

    Driven by compliance with Lloyd’s Register Naval Ship Rules, UK Naval Standards and NATO ANEP-77 Naval Ship Code amongst many other naval standards, the AH140 platform includes levels of survivability, damaged stability and recoverability that exceed those of many contemporary complex Frigate designs. These levels allow AH140 to operate in the threat environment commensurate with combat operations.

  • PROCESSING SYSTEM, C2, SENSORS AND SYSTEMS

    • Can be fitted with an open architecture and scalable Combat Management System, from a range of suppliers.
      Includes comprehensive Command and Control facilities, including dedicated planning and operational spaces for Task Group commanders.
      Integrated EW suite including R-ESM, C-ESM and R-ECM off-board decoys.
      Fitted with an Integrated Bridge and Navigation System, Integrated Platform Management System and Damage Surveillance and Control system.

  • PRINCIPAL PARTICULARS

    • Length O.A: 138.7 metres
    • Beam O.A: 20.4 metres
    • Max Draught: 5.5 metres
    • Max Displacement: ~7000 tonnes

  • PERFORMANCE

    • Range:  6500 – 9000 nm
    • Maximum Speed:  +28 knots
    • Cruise Speed: 12 – 16 knots
    • Power and Propulsion: CODAD 4 x Diesel Engines, 2 x Controllable Pitch Propellers and 4 x Diesel Generators
    Range, maximum speed and cruise speed depend on customer operational profile, loading conditions and sea and wave environment.

  • PLATFORM ADDITIONAL FEATURES

    • Dedicated reconfigurable space capable of accommodating 20 ft ISO Containers supported by power, communications and data services.
    • Incorporates improved Medical Facilities including an Operating Theatre, Intensive Care, Resuscitation Facility and Isolation Ward.
Amphibious Warfare
icon

Amphibious Warfare

The Amphibious Warfare configuration is based on an AH140 variant that has been optimised to embrace modularity and allow for quick re-role to other configurations. This variant of the AH140 design is tailored to exclusively deliver amphibious operations. Able to embark a significant number of offboard assets such as surface and air connectors, alongside equipment that includes light vehicles, this is a fundamental reworking of the platform design that also incorporates dedicated onboard land C2 facilities. This variant of AH140 will deliver an amphibious force, together with land mobility enablers, to carry out raiding operations against adversary targets ashore.

  • ROLE SPECIFIC FEATURES

    Six surface connectors, aviation facilities to maintain an AW101 MERLIN sized aircraft and a flight deck sized for CH-47 CHINOOK will support a rapid transfer of troops ashore from a location over the horizon. Vehicle ramps grant the ability to offload land mobility enablers to permit these troops to reach objectives over greater distances from the point of delivery.

  • SURVIVABILITY, RECOVERABILITY & STANDARDS

    Driven by compliance with Lloyd’s Register Naval Ship Rules, UK Naval Standards and NATO ANEP-77 Naval Ship Code amongst many other naval standards, the AH140 platform includes levels of survivability, damaged stability and recoverability that exceed those of many contemporary complex Frigate designs. These levels allow AH140 to operate in the threat environment commensurate with combat operations.

  • PROCESSING SYSTEM, C2, SENSORS AND SYSTEMS

    • Can be fitted with an open architecture and scalable Combat Management System, from a range of suppliers.
      Includes comprehensive Command and Control facilities, including dedicated planning and operational spaces for Task Group commanders.
      Integrated EW suite including R-ESM, C-ESM and R-ECM off-board decoys.
      Fitted with an Integrated Bridge and Navigation System, Integrated Platform Management System and Damage Surveillance and Control system.

  • PRINCIPAL PARTICULARS

    • Length O.A: 138.7 metres
    • Beam O.A: 20.4 metres
    • Max Draught: 5.5 metres
    • Max Displacement: ~7000 tonnes

    • Range:  6500 – 9000 nm
    • Maximum Speed:  +28 knots
    • Cruise Speed: 12 – 16 knots
    • Power and Propulsion: CODAD 4 x Diesel Engines, 2 x Controllable Pitch Propellers and 4 x Diesel Generators
    Range, maximum speed and cruise speed depend on customer operational profile, loading conditions and sea and wave environment.

  • PLATFORM ADDITIONAL FEATURES

    • Dedicated reconfigurable space capable of accommodating 20 ft ISO Containers supported by power, communications and data services.
    • Incorporates improved Medical Facilities including an Operating Theatre, Intensive Care, Resuscitation Facility and Isolation Ward.
